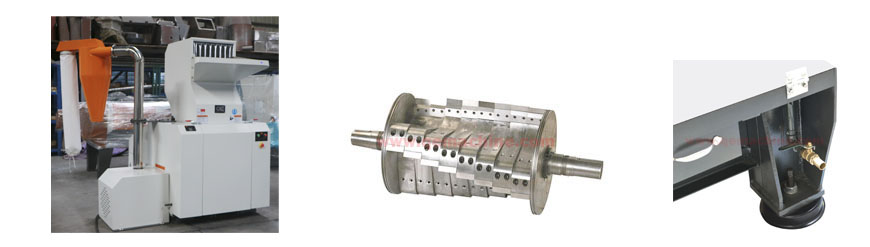

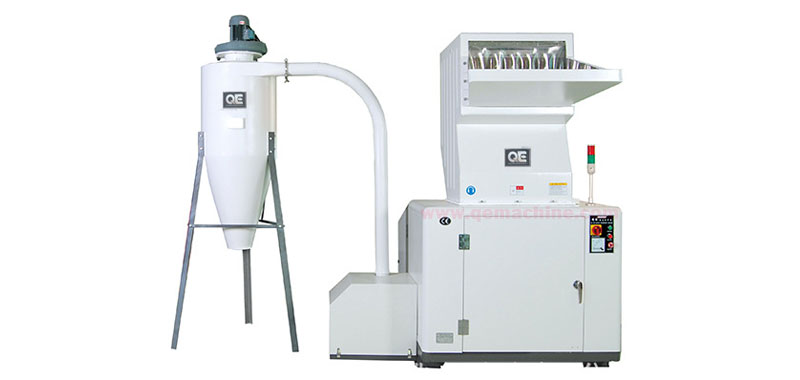

QG SERIES Sound-proof granulators are applicable to granulate various kinds of plastic material from injection moulding machine, blow machine or extrusion machine, This series feature compact design, easy operation and quick blade replacement, it is great in motor power, cutting chamber size, and output capacity, Gradually inclined cutting and integrated power design offer a better cutting aeffect and a lower noise level.
Specifications:
Type | QG3036 | QG3542 | QG4050 | QG4060 | QG4080 | QG5080 | |
Motor Power | Kw | 7.5 | 11 | 15 | 22 | 30 | 37 |
Rotating speed | Rpm | 650 | 650 | 530 | 530 | 530 | 410 |
Material of blades | SKD-11 | ||||||
Quantity of Rotating Blades | Pcs | 3x6 | 3x7 | 3x8 | 3x10 | 3x11 | 3x12 |
Quantity of Fixed Blades | Pcs | 2x1 | 2x2 | 2x2 | 2x2 | 2x2 | 2x2 |
Cutting chamber | mm | 360x262 | 420x280 | 480x360 | 600x360 | 660x420 | 720x520 |
Weight | Kg | 850 | 1000 | 1250 | 1680 | 2050 | 3350 |
Screen size | mm | ¢8 | ¢8 | ¢10 | ¢10 | ¢10 | ¢12 |
Dimensions | mm | 1167x2005x1635 | 1390x2120x1770 | 1635x2255x1860 | 1635x2400x1860 | 1850x2550x1920 | 2150x26500x2500 |
Cooling Device | 0 | √ | √ | √ | √ | √ | |
Notes:
1)"√"Stands for standard. "o" stands for optional.
2）SKD11 is steel grade of Japanese JIS standard.
3)Max.capacity of the machine is subject to diameter of screen mesh size and composition of material.
4)To avoid plastic from sticking to the blades, all materials should be crushed at normal temperature.
5）Power supply: 3￠,110/220/230/380/400/415/440/460/480/575VAC,50/60HZ.
