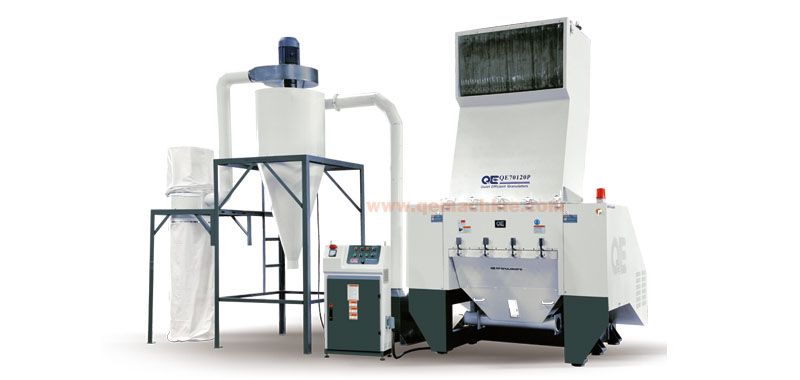

QE Series Strong granulators has wide usage scope. Its main function is to crush all sort of soft or hard plastic, crushing massive, spherical, or strip-like plastic into tiny bits to recycle. The reuse level o f plastic is increased due to this process.

Features:
•The whole machine is made of stainless steel.
•Its compact and sturdy construction decides its function would not be affected by long term usage.
•Heavy burden type bearing with oil-sealed device and soundproof ply can keep the unit from shocking and noise, and prevent the material from pollution.
•Equipped with protective device for motor and chained power-off system to ensure safe operation, and also equipped with protective device for the safe cleaning.
•Blade are made of imported material, SKD11, through special manufacture process and heat treatment, the blades become more durable.

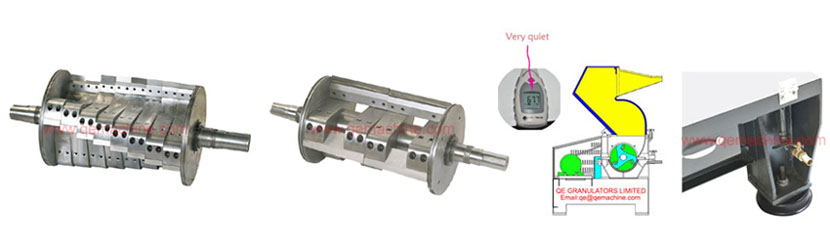

•Special claw and paddle blade designs can crush any hard or soft material extremely easier.
•Adjustable blade can be sharpened up while blunt and reused to prolong its life.
•The separation design of the crushing chamber and material bin allows the mesh screen to discharge and clean easily.
•It has a unique cooling water cycle system, which transfers the heat produced to outside area,can prevent granulated material from lumping efficiently.
•Small type is equipped with castor for easy moving, while heavy type equipped with adjustable level pads to keep stability when working.

•CE standard.

•Specifications:

Notes:

1)"√"Stands for standard. "o" stands for optional.
2）SKD11 is steel grade of Japanese JIS standard.
3)Max.capacity of the machine is subject to diameter of screen mesh size and composition of material.
4)To avoid plastic from sticking to the blades, all materials should be crushed at normal temperature.
5）“P”Adjustable Paddle-blade type, without "P" Adjustable claw-blade type
6）Power supply: 3￠,110/220/230/380/400/415/440/460/480/575VAC,50/60HZ.
