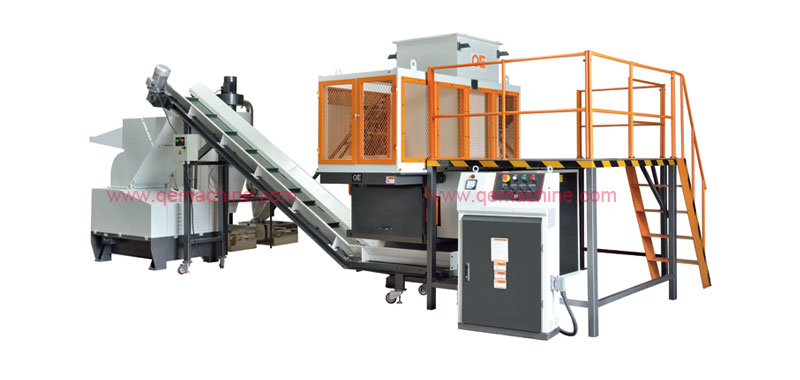

QSS-G series shredders have been developed for the size reduction of pipes up to 1,300mm diameter from materials including PE,PP,UPVC,ABS .
QSS-G series pipe shredders have operator safety, the shredder material can to a conveyor belt transferred to QE granulator. Reducing it to the final size.
Specifications:
Type | QSS3280-G | QSS4080G | QSS40100G | QSS40120G | QSS40150G |
Motor Power(kW) | 37 | 45 | 55 | 75 | 90 |
Speed of main shaft (rpm) | 80 | 80 | 80 | 80 | 80 |
Rotation diameter (mm) | ¢320 | ¢410 | ¢410 | ¢410 | ¢410 |
Ram (mm) | 750 | 915 | 915 | 1120 | 1120 |
Rotating Blades(Pcs) | 46+4 | 42+4 | 54+4 | 66+4 | 90+4 |
Fixed Blades(Pcs) | 4 | 4 | 4 | 4 | 4 |
Hopper inlet (mm) | 750x1100 | 750x1300 | 900x1300 | 1100x1300 | 1400x1300 |
Discharge height (mm) | 550 | 565 | 565 | 565 | 565 |
Pump motor power(KW) | 2.2 | 2.2 | 3.75 | 5.5 | 5.5 |
Weight(kg) | 2950 | 4000 | 4600 | 5600 | 7200 |
Screen size(mm) | ¢40 | ¢40 | ¢40 | ¢40 | ¢40 |
Dimensions | 3450x1850x2450 | 3850x1850x2650 | 3850x2100x2650 | 3850x2350x2650 | 3850x2850x2650 |
We reserve the right to change specifications without prior notice.
