COMMITTED TO PROVIDING QUALITY PRODUCTS

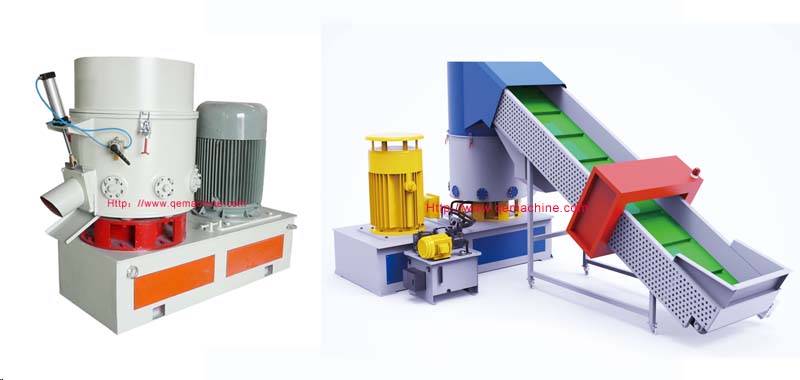

The agglomerator machine is used to agglomerate the plastic scrap such as wet or dry recycling plastic films, PET fiber, woven bags, soft PVC, LDPE, HDPE, PS, PP, foam PS etc…. other thermoplastics .



Features:
Putting the wasted into machine pot body make the material be quickly cut by the high speed rotating turn the blade and the fixed blade shear, then the material along the pot body wall by the knife dish centrifugal force function, at the same time, the material turning up and down by paddle and from all around to move towards to the center of the pot body, the friction of the material itself and friction of pot wall and blades produce much friction heat under the high speed, making the temperature of the material rises to the half-plastic condition and connects to small lump.



Specifications:

Type

GHX300

GHX500

GHX600

GHX800

GHX1500

Spindle speed

950

850

750

750

650

Output (kg/hr)

150-250

300-400

350-450

500-600

800-1000

Motor power (kw)

55

90

110

132

200

Volume(L)

300

500

600

800

1500

Weight(kg)

1800

2500

2700

3000

5000

Dimension(m)

2*0.85*1.6

2.3*0.95*1.7

2.3*1.1*1.75

2.5*1.25*1.8

3*1.6*2.1

Rotating blades Qty

2

4

4

4

4

Fixed blades Qty

6

8

8

8

8

Lubbrication method

grease

grease

grease

grease

grease
