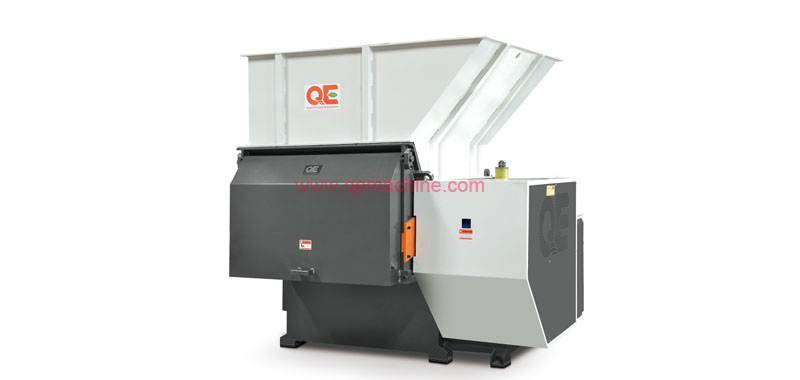

QSS series of single shaft shredder are small to medium size reduction machines suitable for processing a wide range of materials to a uniform particle size, The products can often be sold as is, or be sent for further processing through additional equipment (QE crusher),Throughputs typically range between 300kg/hr –5,000kg/hr+ depending on the model, material type .

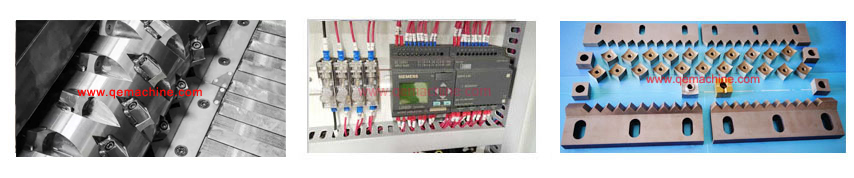

Features:
·Low speed , high torque gear drive
·Powerful hydraulic swing type pusher
·Multiple rotor designs and materials.
·Two speed hydraulic comes standard.
·Motor is installed with overload protective device, connected to the power switch to ensure the machine and controller’s safety.
·Stand Alone Electrical Control Panel with PLC Control System
·Tested, Approved and Certified to the applicable CE safety standards
Specifications:
Type | QSS4080 | QSS40100 | QSS40120 | QSS40150 |
Motor Power(KW) | 37 | 45 | 55 | 75 |
Speed of main shaft (rpm) | 80 | 80 | 80 | 80 |
Rotation diameter (mm) | ¢410 | ¢410 | ¢410 | ¢410 |
Rotor operation length (mm) | 800 | 1000 | 1200 | 1500 |
Ram (mm) | 815 | 815 | 815 | 1120 |
Rotating Blades(Pcs) | 42+4 | 54+4 | 62+4 | 82+4 |
Fixed Blades(Pcs) | 4 | 4 | 4 | 6 |
Hopper inlet (mm) | 1300*800 | 1300*1000 | 1300*1200 | 1300*1500 |
Discharge height (mm) | 565 | 565 | 565 | 565 |
Hydraulic motor power (Kw) | 2.2 | 3.75 | 5.5 | 5.5 |
Weight(kg) | 3650 | 4250 | 5050 | 6300 |
Screen size(mm) | ¢40 | ¢40 | ¢40 | ¢40 |
Dimensions(mm) | 2800×1775×2150 | 2800×1985×2150 | 2800×2500×2150 | 2800×2805×2150 |
We reserve the right to change specifications without prior notice.
