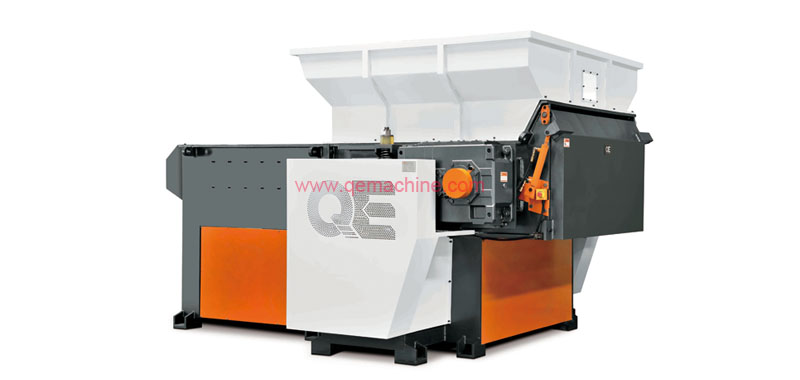

QSA Series Single Shaft Shredders are heavy duty size reduction machines suitable for processing a wide range of materials. These shredders are ideal for especially hard and voluminous products. The large shredding chamber and loading hopper capacity, combined with the PLC controlled horizontal ram pusher ensures optimum feeding of material to the rotor therefore achieving the most efficient performance. Throughputs typically range between1,500kg/hr –12,000kg/hr+ depending on the model.

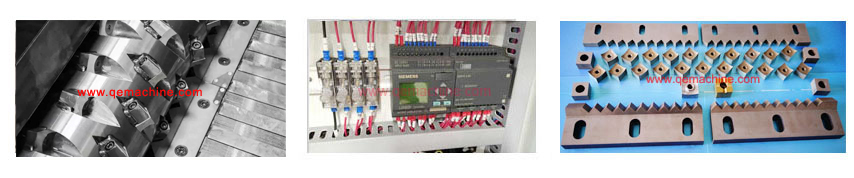

Features:
·Low speed , high torque gear drive
·Powerful hydraulic swing type pusher
·Multiple rotor designs and materials.
·Two speed hydraulic comes standard.
·Motor is installed with overload protective device, connected to the power switch to ensure the machine and controller’s safety.
·Stand Alone Electrical Control Panel with SIEMENS PLC Control System AND SIEMENS electrical parts
.Imported material DC53 blade
·Tested, Approved and Certified to the applicable CE safety standards
Specifications:
Type | QSA48160 | QSA48200 | QSA48250 | QSA65220 | QSA65250 | QSA80300 |
Motor power(KW) | 45+45 | 55+55 | 75+75 | 90+90 | 110+110 | 160+160 |
Speed of main shaft (rpm) | 80 | 80 | 80 | 80 | 80 | 80 |
Rotation diameter (mm) | ¢480 | ¢480 | ¢480 | ¢650 | ¢650 | ¢800 |
Rotor operation length (mm) | 1600 | 2000 | 2500 | 2200 | 2500 | 3000 |
Ram (mm) | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
Rotating blades(Pcs) | 102+4 | 154+4 | 192+4 | 232+4 | 263+4 | 284+6 |
Fixed blades(Pcs) | 3+3 | 4+4 | 4+4 | 4+4 | 4+4 | 5+5 |
Hopper inlet (mm) | 1700*1600 | 1700*2000 | 1700*2500 | 2200*2700 | 2500*2700 | 3000*3300 |
Discharge height(mm) | 730 | 730 | 730 | 750 | 750 | 750 |
Hydraulic motor power (Kw) | 11 | 11 | 11 | 15 | 15 | 22 |
Weight(kg) | 8000 | 9500 | 10500 | 14000 | 15500 | 27500 |
Diameter of screen(mm) | ¢40 | ¢40 | ¢40 | ¢40 | ¢60 | ¢60 |
Dimensions(mm) | 4410×2960×2700 | 4410×4460×2700 | 4410×4960×2700 | 4880×4680×2850 | 4880X5200X2850 | 4880X5600X3000 |
We reserve the right to change specifications without prior notice.
