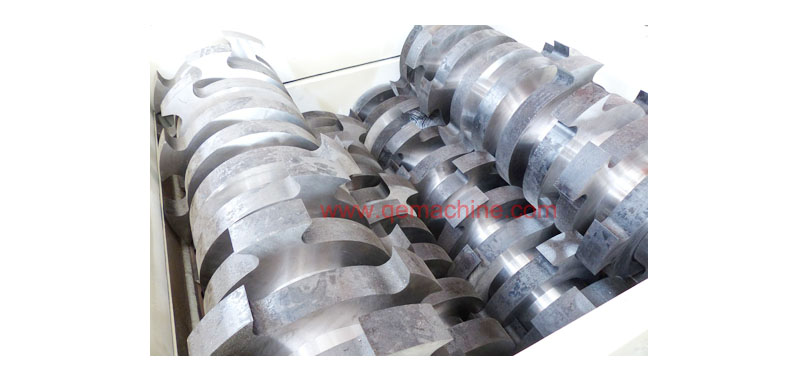

QSF four shaft shredder have strong and resistant cutting system , heavy planet gear boxes to make main shafts rotate at different speeds, Siemens PLC control , they are characterized by their high reliability, as their wide range of applications. such as car body, solid industrial waste, medical waste, e-waste, Metals, Electronic scrap , Paper and cardobard, Miscellaneous, Pulper ropes, Hospital waste, wood, glass, CD card etc...
Specifications:
Model | QSF8040 | QSF8060 | QSF8080 | QSF9080 | QSF90100 | QSF100120 | |
Rotation diameter | mm | Ф245 | Ф245 | Ф245 | Ф284 | Ф284 | Ф320 |
Rotation speed | rpm | 16-25 | 16-25 | 16-25 | 16-25 | 16-25 | 16-25 |
Blade thickness | mm | 18.5 | 18.5 | 18.5 | 25 | 25 | 40 |
Number of Blades | pcs | 20 | 30 | 42 | 20 | 30 | 31 |
Discharge height | mm | 650 | 650 | 650 | 850 | 850 | 960 |
Motor power | kW | 7.5＋7.5 | 11＋11 | 15＋15 | 18.5＋18.5 | 18.5＋18.5 | 22＋22 |
Cutting chamber | mm | 800×400 | 800×600 | 800×800 | 900×800 | 900×1000 | 1000×1200 |
Dimensions | mm | 1880×1200×2060 | 2200×1200×2060 | 2550×1200×2060 | 2650×1350×3000 | 2900×1350×3000 | 3150×1400×3000 |
Weight | KG | Approx1600 | Approx1800 | Approx2000 | Approx3500 | Approx4200 | Approx6000 |
