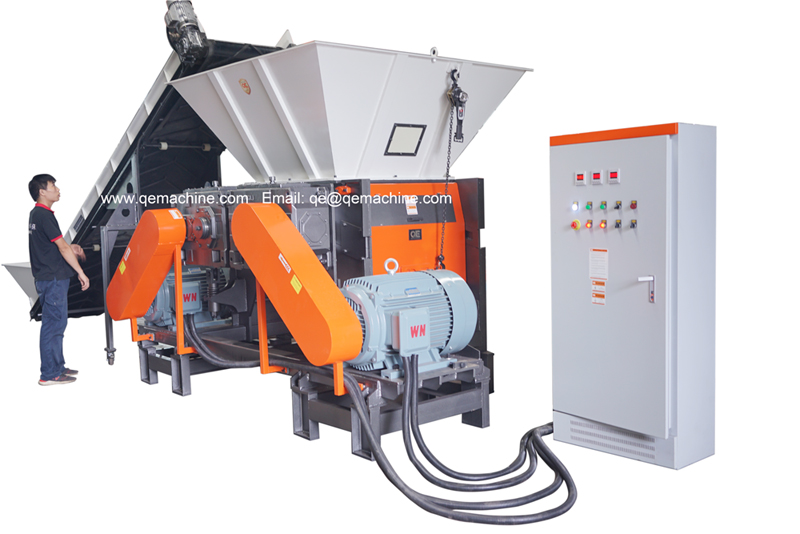

QSSD series of two rotor single shaft shredder are for film, woven bag and newspaper .
Features:

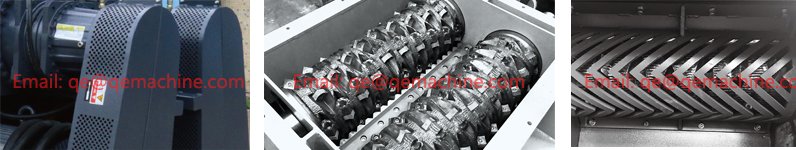

* Double shaft design
*Hardened teeth axis reducer
*Z type screen
*Protective bearing covers to avoide foreign contamination entering the bearing housing grease points to release oil at intervals to increase service life
*PLC control system
*CE safety devices standard.
Specifications:
Model | QSS-D3280 | QSS-D40100 | QSS-D40120 | QSS-D40150 | |
Rotating diameter | Mm | Ф320 | Ф410 | Ф410 | Ф410 |
Rotating speed | Rpm | 80 | 80 | 80 | 80 |
Rotating blades | Pcs | (46+4)*2 | (54+4)*2 | (62+4)*2 | (82+4)*2 |
Fixed blades | Pcs | 4+4 | 4+4 | 4+4 | 4+4 |
Cutting chamber | Mm | 800×980 | 1000×1000 | 1200×1000 | 1500×1000 |
Discharge height | Mm | 570 | 600 | 600 | 850 |
Motor power | Kw | 30+30 | 55+55 | 55+55 | 75+75 |
Screen mesh | Mm | Z40 | Z40 | Z40 | Z40 |
Dimension L*W*H | Mm | 2500*1820*1950 | 3120*2060*2200 | 4000*2850*2280 | 4200*2850*2280 |
Weight | kg | 3200 | 4800 | 5800 | 7100 |
