The system works with Hopper Dryer and sets beside the injection machine to collect the degraded material and scraps produced while injection molding. The regrinding is then conveyed by the blower to the mixing chamber with virgin material proportionally and melt in the plastic-melting chamber. Therefore, the waste materials are reclaimed right before their characteristics change so as to keep the quality, low waste and production cost.

Features:
•Degraded material and scraps can be claimed within 1 Min.
•The recycled product and raw material can be mixed together according to the ratio.
•Metal separator in the mixing chamber can completely separate the metals from the regrinding and virgins.
•V-type adjustable claw-blade structure, blade can be sharpened to reuse again and again. And prolong the life-span.
•Blade is made of imported material, certified by national professional technicians, efficiency is high.
•Low speed operation, low level of noise low power consumption, crushed bits are in even size.
•Motor is installed with protective device, connected to the power switch to ensure the machine and controller’s safety.

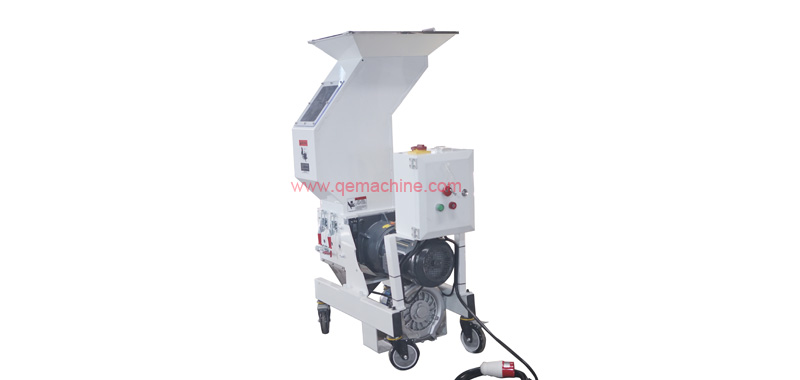

•The contour of the QM-21 is artistic, a strong structure, easy to install, easy and quick maintenance.
•The base is installed with wheels, enable to move around.
•CE safety standards.

Notes:

1) "√"Stands for standard. "o" stands for optional.
2）SKD11 is steel grade of Japanese JIS standard.
3) Max.capacity of the machine is subject to diameter of screen mesh size and composition of material.

4）*Please excuse for not note if some specifications of products are changed.

5）Power supply: 3￠,110/220/230/380/400/415/440/460/480/575VAC,50/60HZ.
