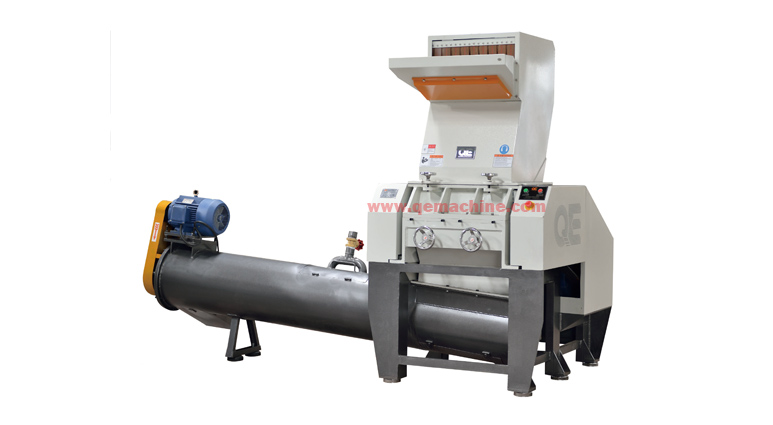

QEPW SERIES plastic granulator is applicable for crushing the wastes plastic bottles, defective plastic, pvc, pe,pp, film etc… it could crushing and washing all in one.
QEPW is easy to operate and efficienty energy saving features.
Specifications:
Type | QEP4060W | QEP4080W | QEP5080W | ||
Motor Power | kW | 22 | 30 | 37 | |
Screw motor power | kw | 5.5 | 5.5 | 5.5 | |
Rotating speed | rpm | 580 | 560 | 410 | |
Quantity of Rotating Blades | Pcs | 6 | 6 | 9 | |
Quantity of Fixed Blades | Pcs | 4 | 4 | 4 | |
Cutting chamber | mm | 460×600 | 460×800 | 520×720 | |
Weight | kg | 1600 | 1900 | 3650 | |
Screen size | mm | Z40 | Z40 | Z40 | |

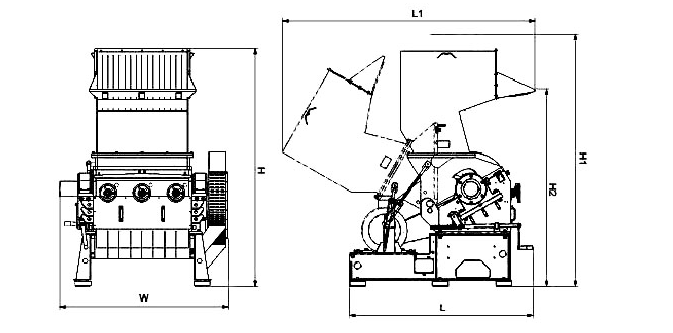

Dimensions | No screw barrel | mm | 1475×1060×2145 | 1450×1420×1980 | 1980x2420x2835 |
With screw barrel | mm | 1475×3520×2145 | 1450×3620×1980 | 1980x3620x2835 | |
Note:
*"√"Stands for standard. "o" stands for optional.
*The standard voltage is3Φ 380V,50Hz.
*Throughputs will be according to the screen hole size.shape material etc.
*Have any special needs, please contact us.
*Please excuse for not note if some specifications of products are changed.
